Alumacraft 1648 Mod
|
 |
|
|
|
|
|
|
|
|
|
|
|

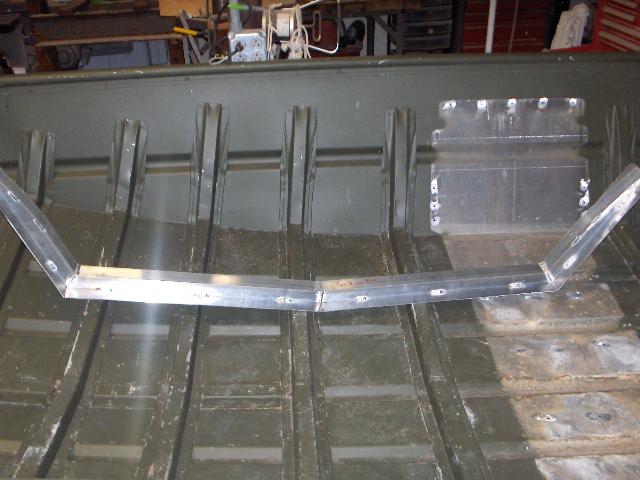

New ribs.
|
|
|
There are no factory ribs underneath the bench seats. Therefore, I have to make replacements. These are simply made from aluminum tube, with sheet stitch welded on, to form the riveting flange. Welding the ribs right to the thin bottom of the boat (riveted boats tend to run a good bit thinner than welded jon boats), would cause too much distortion, and mess up the shape of the boat. The rib can be built benchtop, clamped to a strongback, then merely riveted in, without stressing the boat.
|
|
|
|
|
|
|
|
|
