1981 Yazoo 1542 conversion
|
 |
|
|
|
|
|
|
|
|
|
|
|
Kicker bracket
|
|
|

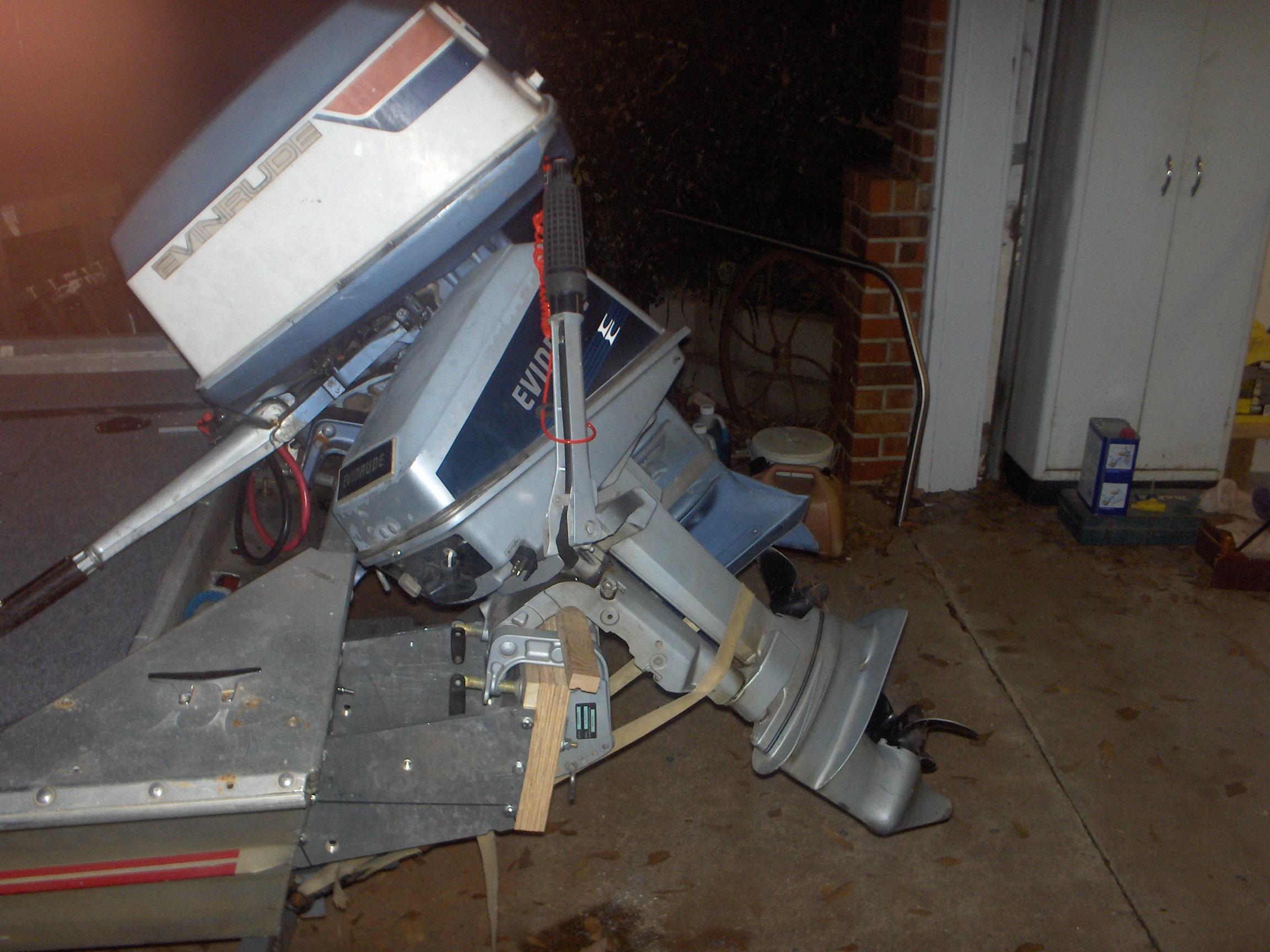

After my first flop with my kicker mount idea (I mounted it, then decided I didn't like it), I decided on this idea. Basically, the flat piece against the transom is .5 inch, and the 2 extending it back are .375. I tapped the .5 inch for .25 inch bolts, and threaded in 3 on each side. The back just has plywood on it, that I can drill new holes in to move up and down for fine tuning later. At some point, I will probably trade the plywood for the a poly material (I hate wood). The motor is through bolted, through the plywood, and 1/2 inch of aluminum, with 5/16 bolts, and clamped on with the clamps. The whole bracket is mounted to the transom with 5/16 stainless bolts, backed up by two 2 x 5 inch plates of 1/4 inch aluminum (vertically, 2 bolts on each plate) on the inside of the transom.
|
|
|
|
|
|
|
|
|
